Friday, October 17, 2014


I have updated the Maxima source for the special sample, made a screenshot, and wrote a draft for a challenge/task in notepad. Perhaps I will post it to the forum. This is certainly not the biggest or most urgent problem to solve, but perhaps also not the smallest or least interesting.

Maxima source code is available.

Here is the text for the challenge/task:

In my other blog post I described a case (screenshot 7) where a function z = f(x, y) has a minimum which just touches the plane z = 0. I made a cross section through the 3D surface, giving a function z = f(x), the equation of which is available in uploaded text files.

The function depends on a parameter L - the original length of the springs in the physical (federgraph) model, all other parameters are kept constant in the special sample.

Question: What exact value of L does correspond with the situation in screenshot 7 where the minimum touches the floor?

Not only do I want to know what the value of L is, I also would like to see how you approach the problem, what tricks you apply, and which software you use.

The Maxima source code is at pastebin.


The last blog entry was about a special case. Today I am blogging about the special sample, which contains the special case. In the setup of the sample I can change parameter L - the lenght of all the springs - over the whole interesting range.

Sample Situations

I have identified a number of situations/cases and uploaded two scilab source files to pastebin. It is special-sample-2D with a 2D graph, and special-sample-3D with a 3D plot. These files contain more info about the concrete setup, and can be used to create independent graphical output in scilab.

a) L = -a/2 = -50 (all springs under tension)
b) L = 0 (force cone, Kraftkegel)
c) L = a/2 = 50 (single equilibrium at centroid)
d) L = ro = 57 (circles intersect at centroid)
e) L = w3/(1+w3) = 63 (touch down at corner C)
f) L = 83 (bifurcation)
g) L = h = 86 (special case one, equilibrium at midpoint of side)
h) L = a = 100 (no vertical edge/jump)
i) L = 115 (centroid dome)
j) L = w3/(w3-1) = 237 (delta peak take off)

Screenshot Series

It is difficult to describe in words. Therefore the screenshots are the meat of this blog post - to be used them as a starting point for further exploration. I have included screenshots for intermediate situations in between the special points listed above.

Screenshot 1) L = -50 = negative jump
Screenshot 2) L = 0 = force cone
Screenshot 3) L = 50 = a/2 = circles intersect at mid of triangle side
Screenshot 4) L = 57 = ro = circles intersect at centroid
Screenshot 5) L = 63 = w3/(1+w3) = touch down at point C
Screenshot 6) L = 74
Screenshot 7) L = 83 = touch down of curve
Screenshot 8) L = 86 = h = w3/2 * a = circles touch side
Screenshot 9) L = 100 = a = no jump, only a slope
Screenshot 10) L = 115
Screenshot 11) L = 120
Screenshot 12) L = 140
Screenshot 13) L = 170
Screenshot 14) L = 190
Screenshot 15) L = 210
Screenshot 16) L = 237 = w3/(1-w3) slope vanishes and peak touches floor in point C
Screenshot 17) L = 237 = same as 16, but different perspective
Screenshot 18) L = 300 = delta no longer touches plane
Screenshot 19) L = 490 = curve bends

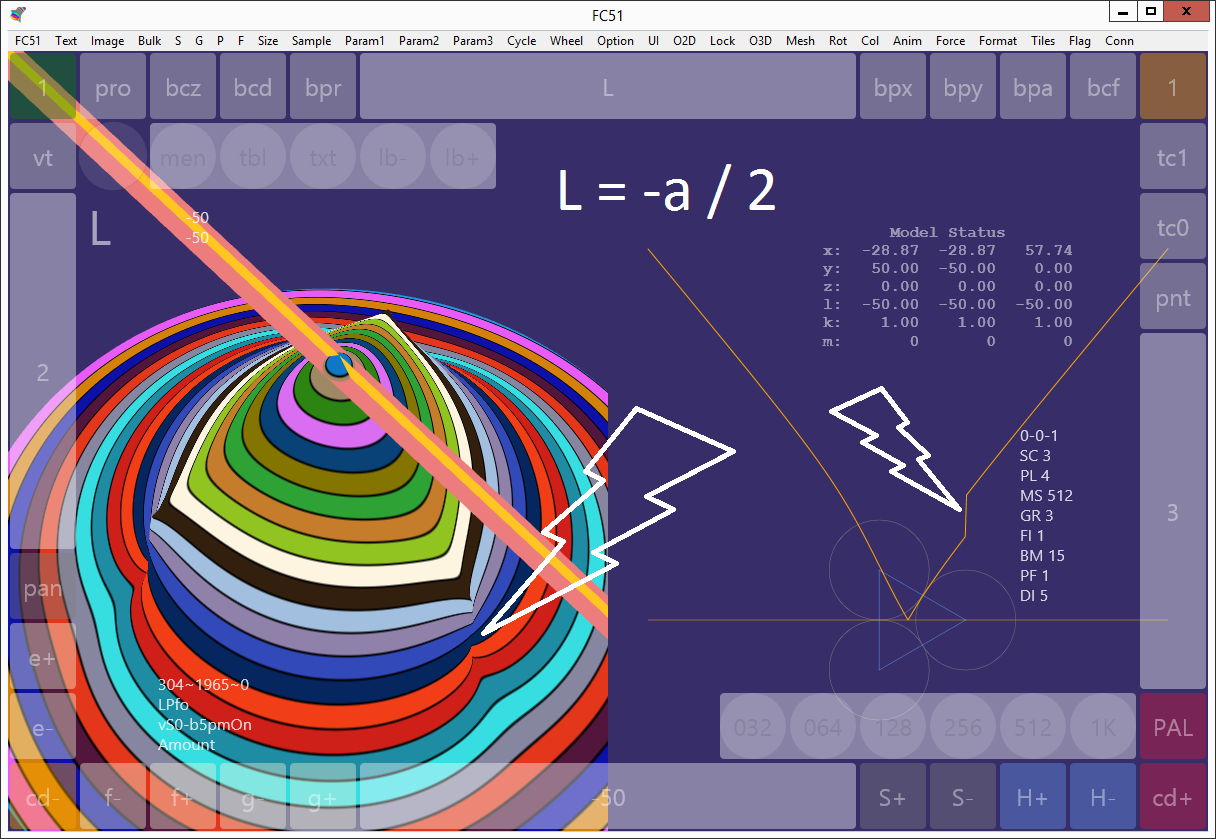

Screenshot 1 (L = -50)

This is the only screenshot for a negative value of L. Notice the direction of the jump. The 3D graph looks like a top down view, but notice that it is actually viewed bottom up. The 3D surface represents the absolute value of the force, which stretches from possibly zero (around the origin) to positive values everywhere far from the orgin, as the 2D graph on the right hand side shows. I decided to let the triangle point to the right. Otherwise the 2D graph would appear rotated 90 degress, which is the normal case, where the triangle points upwards. Note that the gray circles for the actual length of the springs touch each other. The peak of the yellow curve points down to the centroid of the triangle.

Screenshot 1

Screenshot 2 (L = 0)

This is indeed a special case.The force surface plot is a cone. There is no problem when you move point P over a corner. We only see one equilibrium at the centroid. The force in any of the springs will be positive - tension, not pressure.

Screenshot 2

Screenshot 3 (L = 50)

The circles touch at the midpoint of a side. This is the same as in Screenshot 1, but the spring will be under pressure when point P is moved towards the corner where it is attached. We see a vertical edge exactly where the corners of the triangle are. This is where the direction of the force will turn around. There is still just one equilibrium - where the surface touches plane z = 0.

Screenshot 3

Screenshot 4 (L = 57 = ro)

This is special only because the circles intersect at the centroid.

Screenshot 4

Screenshot 5 (L = 63)

Notice that in this situation the peak will touch the plane at point C - the triangle corner (x3, y3) - which is on the x-axis in this special sample.

Screenshot 5

Screenshot 6 (L = 74)

Notice the slope which is not present in the previous picture. It has appeared, so I thought it is worth a screenshot.

Screenshot 6

Screenshot 7 (L = 83)

The slope is getting bigger, but I want to turn your attention to the fact that the curve has touched the plane. We now have three zeros within the plotted section. Overall we have even more. Until now I have not yet determined the expression for the exact value of L when this happens.

Screenshot 7

Screenshot 8 (L = h = 86 = w3/2 * a)

This is the special case from the last blog post. The curve is touching the plane exactly at the middle of the triangle side.

Screenshot 8

Screenshot 9 (L = 100 = a)

This situation is special because the jump (vertical edge) temporarily disappeared. Also note that the one spot - that was situated on the triangle side in the last screenshot - is now moving closer to the centroid.

Screenshot 9

Screenshot 10 (L = 115)

Close to the centroid the surface smoothly touches the plane and the shape of the surface in that area is almost circular. I still have to find a name for this situation. Also note the six-corner-shape.

Screenshot 10

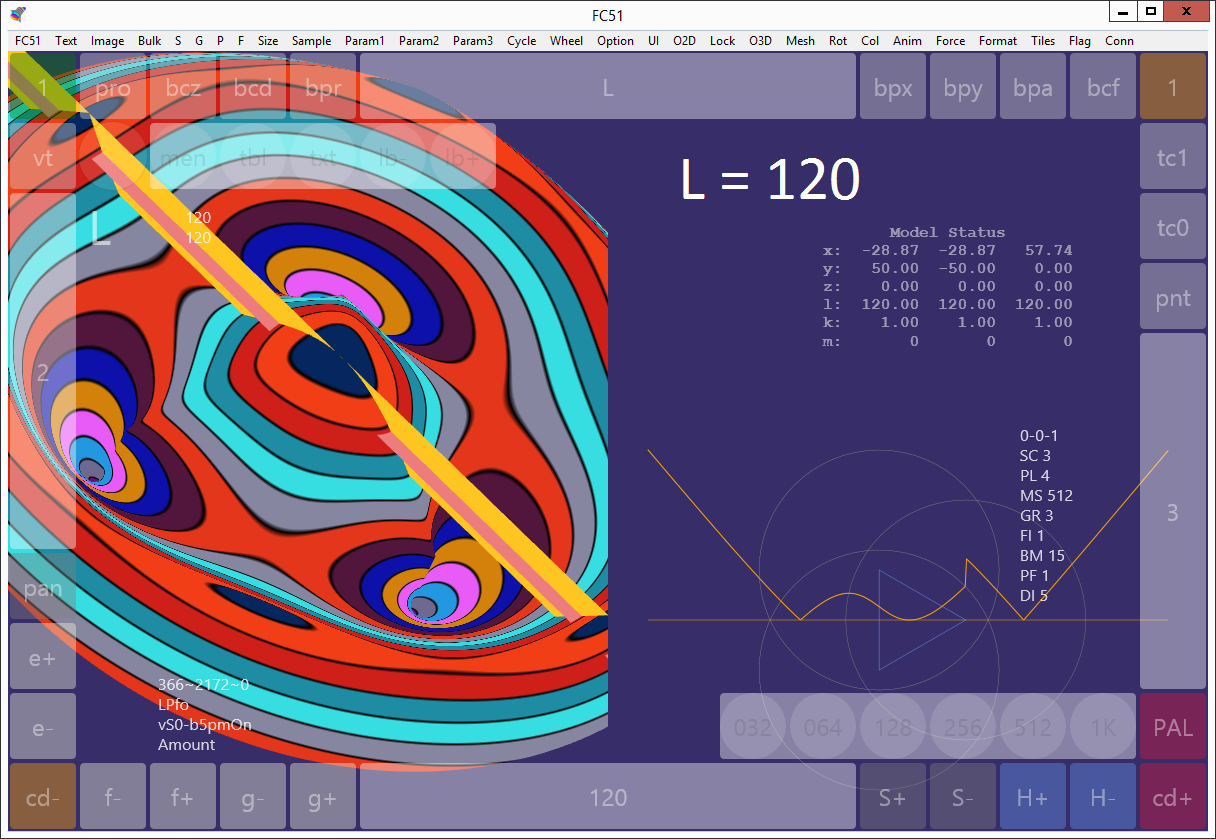

Screenshot 11 (L = 120)

What seemed to be round in the middle is now looking like a triangle.

Screenshot 11

Screenshot 12 (L = 140)

The mould has appeared again. The shape in the center is looking like a delta. Notice the slope which leads to point C.

Screenshot 12

Screenshot 13 (L = 170)

The delta is taking shape. The slope is getting shorter.

Screenshot 13

Screenshot 14 (L = 190)

For this screenshot I have adjusted the texture parameters - the width and offset of the colored rings. My interest is now focussed on the slope.

Screenshot 14

Screenshot 15 (L = 210)

The slope has become very short here. It is about to disappear. This is best seen from the side - so I changed rotation (and zoom).

Screenshot 15

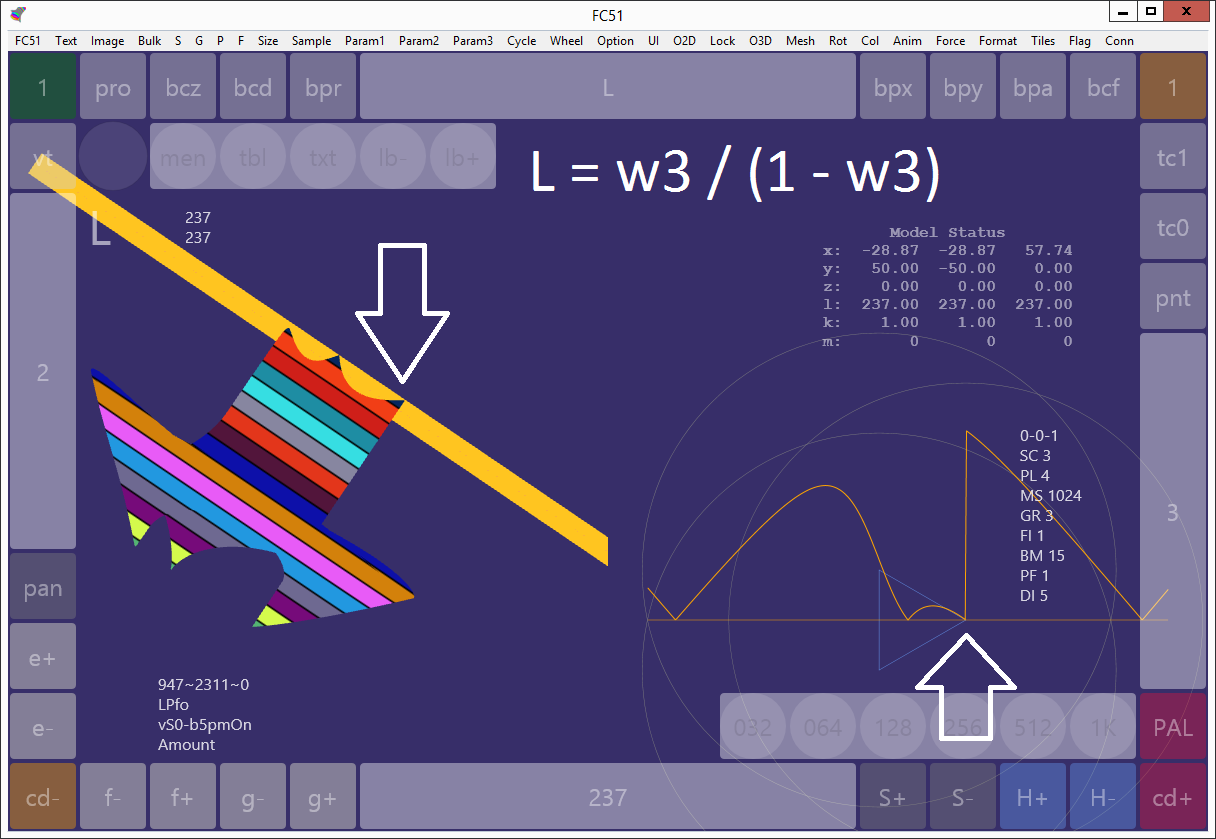

Screenshot 16 (L = 237 = w3/(1-w3) )

Now the slope is gone, and the peak touches down to the plane exactly at point C.

Screenshot 16

Screenshot 17 (L = 237)

Ths is the same situation as in screenshot 16, but with different view parameters.

Screenshot 17

Screenshot 18 (L = 300)

Notice that the peak no longer touches the plane. Since I increased the plotted range you can see the rim. The six equilibria around the rim are almost sinking into it.

Screenshot 18

Screenshot 19 (L = 490)

Parameter L is now pretty much out of bounds. Notice how the outer slope appears curved.

Screenshot 19

Now imagine how everything will fit if we translate part of the curve, mirror another part of the curve, and how that would simplify the equations.

Thursday, October 2, 2014


In this blog post, I describe a problem or task. I do not give a solution, but I have already computed values in a simulation, so that you can look at the graphical output, before you start up your computer algebra software to create a new worksheet for the task.

It is about a system of springs. The Federgraph application has already implemented a 3D model of this system. The description of the task should be compatible with the identifiers used in the application, so that the mathematical model can stay in sync with the source code for the graph.

The common case

A common case of a system of springs is given in the following picture. Three springs are attached to the corners of a triangle ABC. I have drawn circles to show the zero-force-length of each spring. The free end of each spring is connected to point P which can freely move within the (x, y) plane (where z = 0). We will consider the absolute value of force F, which keeps point P at a given location. We will also consider the amount of energy E stored within the system, when moved to point P.

Picture 1: A system of springs

There are special locations, where force is zero and energy has a maximum or minimum. These locations are the stable or unstable equilibria, which we want to find as solutions of the equations of the mathematical model for the system. I can help out with some graphics.

Special Case 1

This case is given when the triangle is equilateral, and the zero-length of each spring is equal to the height of the triangle.

As a special situation for special case 1, P shall be located at the midpoint of side AB, as depicted in the following picture.

Picture 2: Schema view of special case 1

It is clear that the forces in two of the springs (AP, BP) cancel each other out, while the force in the third spring (CP) is zero, because the actual length of this spring (h) is equal to its zero-length (h). There happens to be an unstable equilibrium at point P. Think about it, then find A, B, C, and P in the following picture. This picture is a perspective projection, viewed directly from the top.

Picture 3: Top view for special case 1

Question 1: How many equilibria exist? Perhaps it is easier to see in the next picture, which shows the same situation from a different angle.

Picture 4: Side view for special case 1

Special Case 2

Now change the length of the springs, but keep them all at the same length (Parameter L). There is a bifurcation. It is easy to see when I scroll with the mouse wheel, but you should look at the math first. From the equations, you will know what to expect. It is a long time ago that I attended math lessons, I guess you are much better equipped than I am to analyze this stuff.

Picture 5: Parameter L is close to where a bifurcation occurs
Question 2: At what value of parameter L does the bifurcation happen?

I hope that the term bifurcation is correct, not sure, but I leave the explanation of all this to you anyway.

Special Case 3

The center point of the triangle is a special point. An equilibrium can be found there. We still work with the equilateral triangle, but in the following picture, the value of L is different again.

Picture 6: Four solutions combined into one at the center point.
Question 3: For what value of parameter L will the equilibrium at the center merge with three other special points?


It is up to you to make conclusions. I have explored the system of springs, the general model, to some extent and do promise that there are more special cases. It will be fun to see them, once you have set up your worksheet!

This is my first blog post, I still have to find out how to do it properly. Perhaps I should not paste the text from Word, but instead paste clean Html? I will post a link to this blog-entry on my Profile and the Federgraph Page, where comments are enabled.
